R |
D Diameter |
D1 | B Cutting Height |
d Shank |
L Overall Length |
Flute | Ball Bearing | Description | Replacement Bearing |
|---|---|---|---|---|---|---|---|---|---|
| 3/8 | 1-3/8 | 5/8 | 5/8 | 1/4 | 2-11/16 | 4 | Lower | *4 Flute Design | **47712 Corner Round / 47701 Beading |
2 Flute & 4 Flute
The router bits found on this page include the miniature 3/16" and 1/4" diameter ball bearings for routing tight spaces, the In-Tech™ insert replacement knife series, diamond tipped (PCD) bits as well as the standard 1/2" diameter ball bearings.

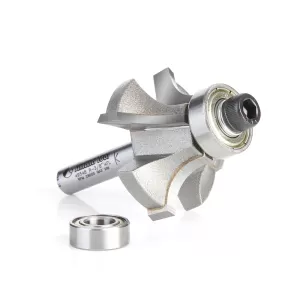

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over, and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.
Tool #DRB-504 is excellent for composite panels, fiberglass, fiberglass PCB board, fiberglass reinforced composites, lightweight composites, custom composite materials, fiber-reinforced urethane and fiber-reinforced structural foam floors.
