| a° a° Degree |
D Diameter |
B Cutting Height |
B1 | d Shank |
L Overall Length |
a°1 | D1 | Flute | Type | Max RPM |
|---|---|---|---|---|---|---|---|---|---|---|
| 90° | 1/2 | 13/64 | 3/8 | 1/4 | 2 | 45° | 0.090 | 2 | Polycrystalline Diamond (PCD) Tipped V-Groove |
20,000
|
Amana Tool Carbide tipped double edge folding V-groove & rectangular groove (for thicker walls) industrial router bits for shaping Aluminum Composite Materials (ACM) such as Alucobond®, Dibond® and other brands alike. Designed for scoring the following aluminum/plastic composite materials with 90°, 108°, 135° angles (with flat bottoms) and rectangular grooves:
- Acetate
- Aluminum, Brass, Bronze, Clay, Zinc & Wood Composite Panels
- Aluminium Composite Materials (ACM)
- Aluminium Composite Panel (ACP)*
- Aluminum 5052
- ALPOLIC® Copper Composite Material (CCM)
- Alucobond®
- Alupanel®
- Bakelite
- Dibond®
- Durabond***
- e-panel™
- Etalbond®
- Nylon
- PE and FR Cores
- Phenolics
- Plastic/Acrylic
- Plexiglas®
- PVC
- Thermoplastics
- Titanium Composite Material (TCM)
- Wood

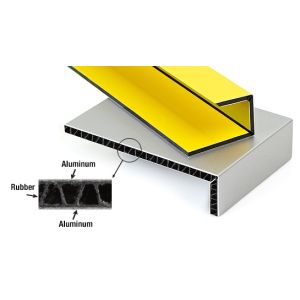

*Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminium sheets bonded to a non-aluminium core and is widely used as cladding for many diverse applications such as interior and exterior office buildings, external cladding or facades of buildings, hospitals, convention centers, airports, hotels, insulation and signage. ***Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding the remaining material by hand. Ideal for wall panel fabrication.
Industrial quality carbide tipped ACM panel router bits, also known Dibond® composite router bits, Alucobond® composite router bits, Rectangular Groove router bits (for thicker walls), V folding Alucobond® router bits and V folding Dibond® router bits are very strong despite their overall lightweight and may be ordered any color or designed with patterns that imitate other materials, such as wood and marble, making them very popular.
Read our article: Routing Aluminum Composite Material (ACM) Panels Like Alucobond® and Dibond®
Specially designed router bits are used to route V-grooves in the above materials to allow easy bending without cracking the bent area. Route within 0.8mm from the bottom of the composite panel to achieve a clean bend/radius. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding the remaining material by hand. Ideal for wall panel fabrication.
- Industrial quality, carbide tipped
- For use on routers and CNC machines
- Supplied with all components necessary for operation
- Integrated modular control electronics for an easy connection to the computer via USB interface resp. via optional parallel or optional Ethernet RJ45 interface
- MDF machine table with aluminum T-slots resp. optional aluminum T-slot table
- Two different machine table heights
- Bosch Rexroth ball bearing guide
- Semi Closed Loop System™
- HIWIN® ball screws
- Flexi Guides™ to securely guide cables and tubes
- Powerful motors Nema 23 (Z-axis: 3A; X- and Y-axis: 4A)
- In-house development of STEPCRAFT aluminum profiles with innovative high rigidity X-profile (registered utility model)
- Standard Ø 43 mm tool holder enables the use of third-party devices (if necessary with adapter)
- Safety brush
- Completely removable machine table
- Freestyle Milling™
- Made in Germany
- 3 years manufacturer's warranty
- Overall Size (X,Y,Z): 1213 x 1624x 646 mm
- Working Space (X,Y,Z): 979 x 1444 x 194 mm
- Clamping Surface (X,Y): 1143 x 1550 mm
- Backlash: < 0.03 mm
- Weight: 137 kg (302.03 lbs)
