Save 30%

Amana Tool 45624-K SC Spektra Extreme Tool Life Coated V-Groove 60 Deg x 1/4 D x 7/32 CH x 1/4 Inch SHK 3-Flute Router Bit

List price: $AU89.00
$AU62.00
You save: $AU27.00 (30%)
45624-K SC
In stock
+

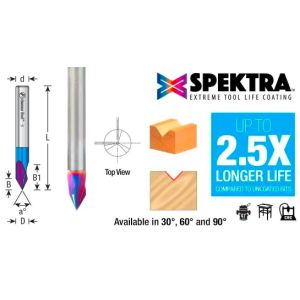

a° Degree Diameter Cutting Height B1 Shank Overall Length Flute Surface Coating Diameter Measurements
60° 1/4 7/32 31/64 1/4 2 3 Spektra

Inch

Spektra Logo for CNC Router Bits

Spektra Extreme Tool Life Coated V-Groove Router Bits for Sign Making & Lettering
Note: Items are Solid Carbide unless noted as Solid Carbide (Brazed To Steel Shank)

Cut decorative 'V' grooves and lettering on signs with these 'V' groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Amana Tool® Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant, distinctively-tinted coloring, nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is an micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coatings prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Excellent for Cutting:

  • Acrylic
  • Composites
  • Composite Decking
  • Foam
  • Laminate
  • MDF/HDF
  • Melamine
  • Plywood
  • PVC Plastic
  • Sign Board
  • Solid Surface
  • 20lbs High Density Urethane
  • Veneered Plywood
  • Wood
  • Xanita® Board
  • Supplied with all components necessary for operation
  • Integrated modular control electronics for an easy connection to the computer via USB interface resp. via optional parallel or optional Ethernet RJ45 interface
  • MDF machine table with aluminum T-slots resp. optional aluminum T-slot table
  • Two different machine table heights
  • Bosch Rexroth ball bearing guide
  • Semi Closed Loop System™
  • HIWIN® ball screws
  • Flexi Guides™ to securely guide cables and tubes
  • Powerful motors Nema 23 (Z-axis: 3A; X- and Y-axis: 4A)
  • In-house development of STEPCRAFT aluminum profiles with innovative high rigidity X-profile (registered utility model)
  • Standard Ø 43 mm tool holder enables the use of third-party devices (if necessary with adapter)
  • Safety brush
  • Completely removable machine table
  • Freestyle Milling™
  • Made in Germany
  • 3 years manufacturer's warranty
  • Overall Size (X,Y,Z): 1213 x 1624x 646 mm
  • Working Space (X,Y,Z): 979 x 1444 x 194 mm
  • Clamping Surface (X,Y): 1143 x 1550 mm
  • Backlash: < 0.03 mm
  • Weight: 137 kg (302.03 lbs)
What’s Required Coming Soon
What's Included Coming Soon
