THE ONLY Spektra™ Coated Bits – Made in the USA

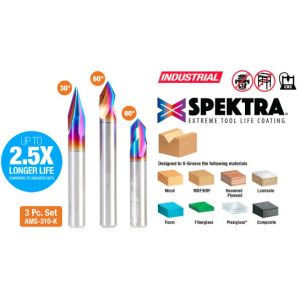

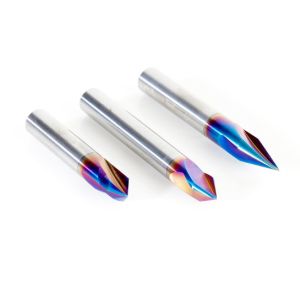

Solid Carbide Spektra™ Extreme Tool Life Coated Router Bits
All items are solid carbide unless noted otherwise. AMS-248-K is Solid carbide (brazed to steel shank).
Designed specifically for a wide variety of applications. Also perfect for signmaking. Each router bit is manufactured from Amana’s exclusive grade carbide according to stringent quality standards.
Amana Tool® solid carbide router bits provide consistent, repeatable quality. Every tool is guaranteed to match the geometry on the prints, every time on every order. Best control of carbide grades for woodworking, and absolute control of quality standards on all carbide blanks.
Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.
- nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
- Coating prevents high heat and oxidation which is detrimental to cutting tool performance. Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
- nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.
Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.
Excellent for Cutting:
- Acrylic
- Composites
- Composite Decking
- Foam
- Laminate
- Melamine
- MDF/HDF
- Plywood
- Supplied with all components necessary for operation
- Integrated modular control electronics for an easy connection to the computer via USB interface resp. via optional parallel or optional Ethernet RJ45 interface
- MDF machine table with aluminum T-slots resp. optional aluminum T-slot table
- Two different machine table heights
- Bosch Rexroth ball bearing guide
- Semi Closed Loop System™
- HIWIN® ball screws
- Flexi Guides™ to securely guide cables and tubes
- Powerful motors Nema 23 (Z-axis: 3A; X- and Y-axis: 4A)
- In-house development of STEPCRAFT aluminum profiles with innovative high rigidity X-profile (registered utility model)
- Standard Ø 43 mm tool holder enables the use of third-party devices (if necessary with adapter)
- Safety brush
- Completely removable machine table
- Freestyle Milling™
- Made in Germany
- 3 years manufacturer's warranty
- Overall Size (X,Y,Z): 1213 x 1624x 646 mm
- Working Space (X,Y,Z): 979 x 1444 x 194 mm
- Clamping Surface (X,Y): 1143 x 1550 mm
- Backlash: < 0.03 mm
- Weight: 137 kg (302.03 lbs)
