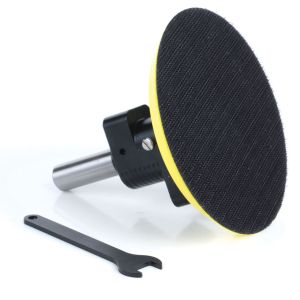

Amana Tool 61299 IN-SAND CNC Sander 4 Dia x 1/2 Inch Shank

Amana Tool 61299 IN-SAND CNC Sander 4 Dia x 1/2 Inch Shank

List price: $AU845.00
$AU780.00
You save: $AU65.00 (8%)
61299
On backorder
+ −
The IN-SAND™ CNC Sander is designed to use with any 4” Sanding disc (Not included) according with the finish needed.
  • Industrial quality
  • 3.50 orbit value

The Lower the grit numbers, the coarser the disc will be, and the higher the grit, the finer it will be.
  • 40 grit: Coarse
  • 80 grit: Medium
  • 100 grit: Medium
  • 120 grit: Fine
  • 220 grit: Fine
  • 440 grit: Extra Fine

Knowing which grit sandpaper to use depends on the type of job and what step in the process you are in.

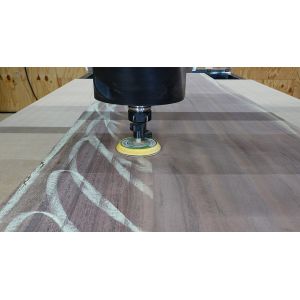

Set Up at the CNC Machine.

  • Check the tool Flexibility movement it should be about 3mm.

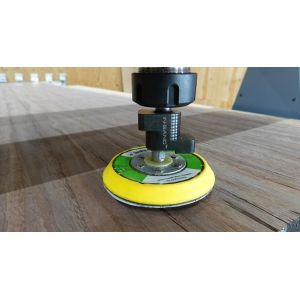

  • Install the IN-SAND™ at the tool holder or Directly at the Spindle.

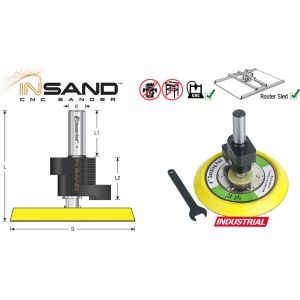

  • You can measure the IN-SAND™ on the machine measuring device or simply update manually the tool length from pad surface, The diameter should be 4-11/32” (110mm) and not 3-15/16” (100mm) of the orbital movement of the pad.
  • The sanding power is defined by the “Milling Depth” the max depth is 1/8” (3.17mm) but our recommendation is 8,000 RPM and milling depth of 0.3 – 0.5mm.
  • Use the Option of “Milling Pockets” to control the tool path.



saw blade guidelines for safetyWARNING! The max RPM for this orbital sander is 8,000 RPM. Working with higher rotation speed can cause damage to the machine spindle.



  • Supplied with all components necessary for operation
  • Integrated modular control electronics for an easy connection to the computer via USB interface resp. via optional parallel or optional Ethernet RJ45 interface
  • MDF machine table with aluminum T-slots resp. optional aluminum T-slot table
  • Two different machine table heights
  • Bosch Rexroth ball bearing guide
  • Semi Closed Loop System™
  • HIWIN® ball screws
  • Flexi Guides™ to securely guide cables and tubes
  • Powerful motors Nema 23 (Z-axis: 3A; X- and Y-axis: 4A)
  • In-house development of STEPCRAFT aluminum profiles with innovative high rigidity X-profile (registered utility model)
  • Standard Ø 43 mm tool holder enables the use of third-party devices (if necessary with adapter)
  • Safety brush
  • Completely removable machine table
  • Freestyle Milling™
  • Made in Germany
  • 3 years manufacturer's warranty
  • Overall Size (X,Y,Z): 1213 x 1624x 646 mm
  • Working Space (X,Y,Z): 979 x 1444 x 194 mm
  • Clamping Surface (X,Y): 1143 x 1550 mm
  • Backlash: < 0.03 mm
  • Weight: 137 kg (302.03 lbs)
