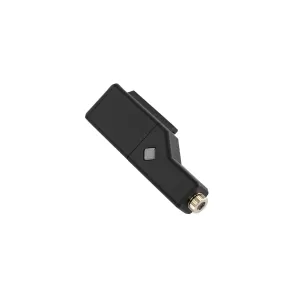

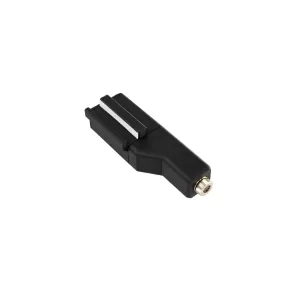

Crossline Laser D-Series (D3)

With the STEPCRAFT crossline laser you can quickly and easily determine the workpiece zero point (X, Y) when working with your CNC machine. The cross line laser works with a precise and high-contrast laser beam (cross line), with which you can quickly and easily approach and define the corner of the workpiece.

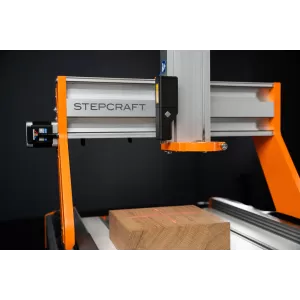

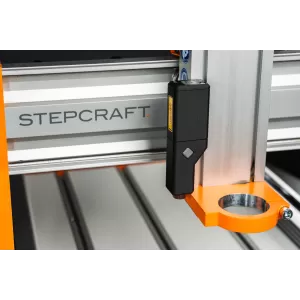

The STEPCRAFT crossline laser is quickly mounted on the Z-axis of your CNC machine using the specified mounting points, suitable for the respective D-/M-series, and is immediately ready for operation after using four AAA batteries (not included).

The laser is switched on by pressing the integrated button. The automatic switch-off function switches the laser off again after approx. 50 seconds. The batteries have a service life of approx. 2 years with average use.

• Height: 105 mm
• Width/depth: 29/37 mm
• Material: plastic, steel
• Weight: 50 g
• Power: 5 mW
• Wavelength: 650 nm
• Laser protection class: 1

Scope of Delivery:

• Fully assembled crossline laser, suitable for D-Series (D3)

Note:

• The four AAA batteries required to operate the laser are not included in the scope of delivery.
