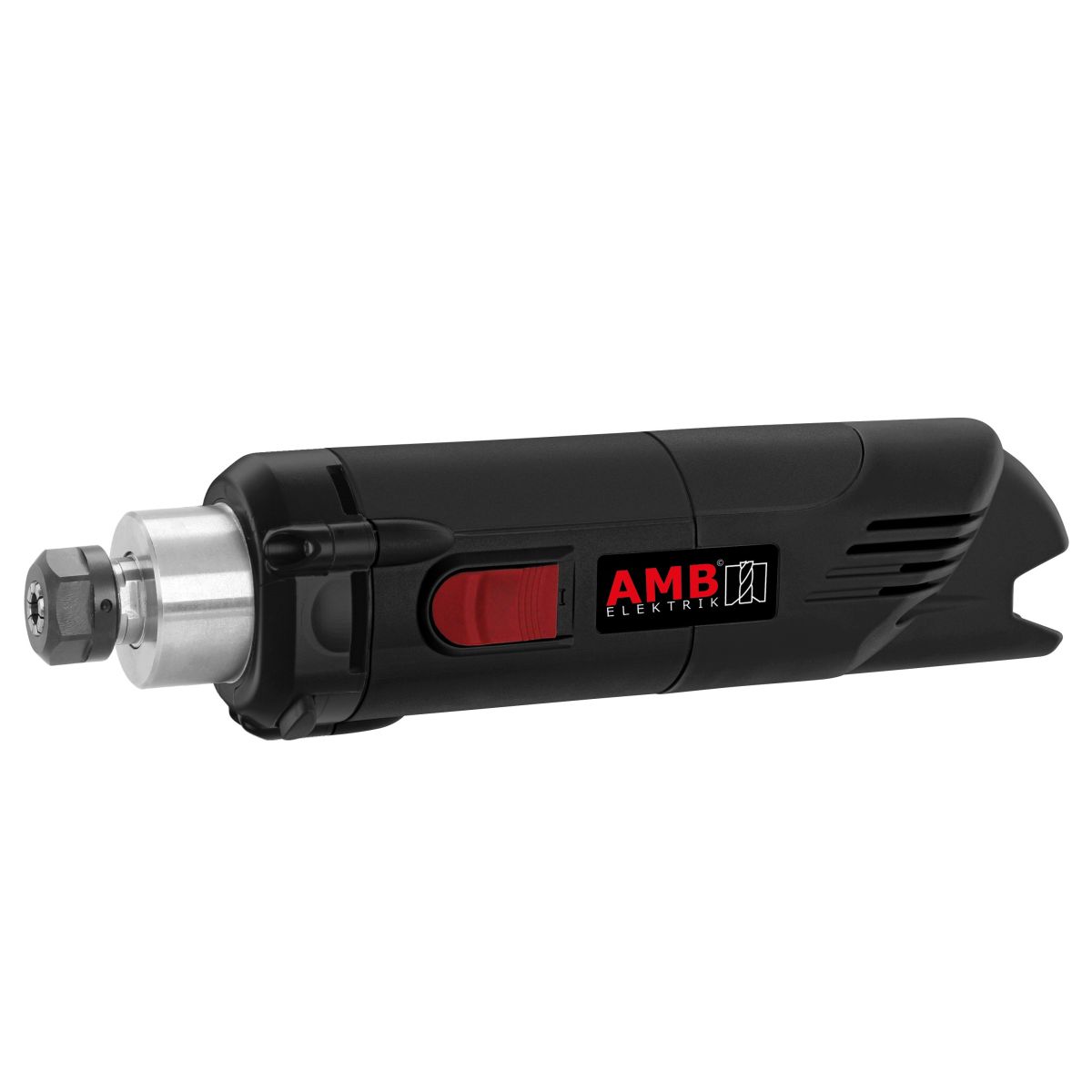

Advanced extra powerful AMB Milling motor (approx. 35-40% more power over the 1050-serie). This spindle pushes power reserve very fast and aggresive so there is nearly no power gap under load. Further, this motor has an ER16 collet system with balanced clamping nut, which results in 3 x better repeatability of concentricity compared to regular AMB/Kress collet system. Guaranteed concentricity in the cone < 0,01 mm.
Component features:
- MAXX-Power 1400 Watt motor
- Effective power: 750W
- Speed range: 5.000 - 25.000 rpm
- Motor weight: 1,8 kg
- Slim and ergonomically-designed housing
- Precise tachometer readjustment for constant power and speed stability
- Soft start-up and overtemperature protection
- Special winding protection for the motor against dust and material particles
- Motor flange made of steel with double bearing for higher milling performance (43mm)
- Spindle lock for easy milling tool changes
- Electronic overload protection prevents overheat of the motor
- Carbon brush switch-off to protect the motor
- 3 x better repeatability of concentricity
- ground cone: guaranteed concentricity in the cone < 0,01 mm
Scope of delivery:
- Milling motor 1400 FME-P (230VAC)
- Precision collet chuck ER16 - Ø 8 mm
- Balanced ER16 collet nut
- User manual
- Mains cable 4meter, quick action lock system
- Test Certificate with the measured run-out accuracy
- Supplied with all components necessary for operation
- Integrated modular control electronics for an easy connection to the computer via USB interface resp. via optional parallel or optional Ethernet RJ45 interface
- MDF machine table with aluminum T-slots resp. optional aluminum T-slot table
- Two different machine table heights
- Bosch Rexroth ball bearing guide
- Semi Closed Loop System™
- HIWIN® ball screws
- Flexi Guides™ to securely guide cables and tubes
- Powerful motors Nema 23 (Z-axis: 3A; X- and Y-axis: 4A)
- In-house development of STEPCRAFT aluminum profiles with innovative high rigidity X-profile (registered utility model)
- Standard Ø 43 mm tool holder enables the use of third-party devices (if necessary with adapter)
- Safety brush
- Completely removable machine table
- Freestyle Milling™
- Made in Germany
- 3 years manufacturer's warranty
- Overall Size (X,Y,Z): 1213 x 1624x 646 mm
- Working Space (X,Y,Z): 979 x 1444 x 194 mm
- Clamping Surface (X,Y): 1143 x 1550 mm
- Backlash: < 0.03 mm
- Weight: 137 kg (302.03 lbs)
