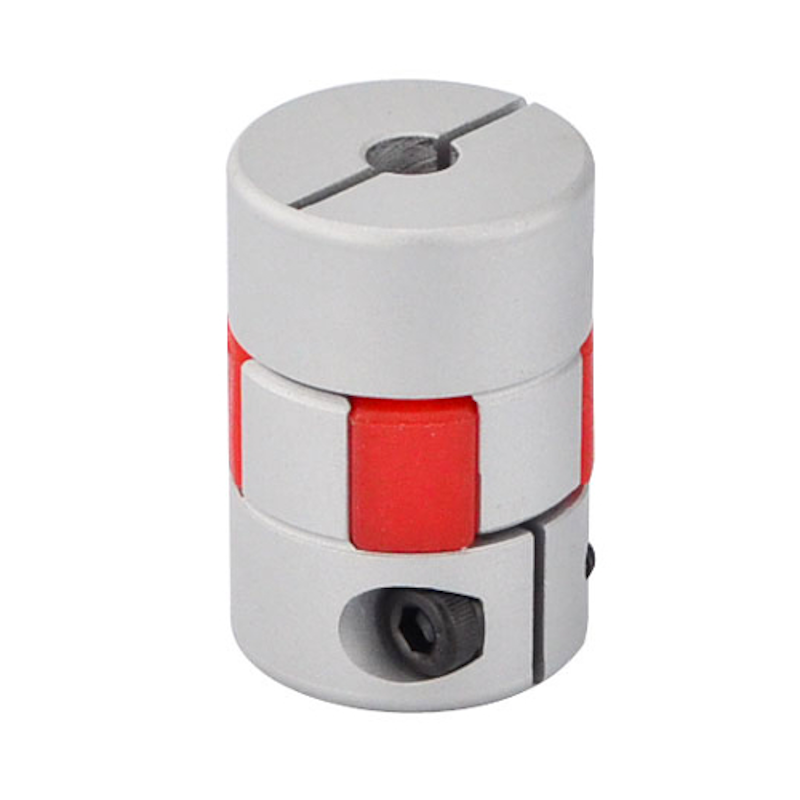

This high quality aluminum flexible jaw coupling can be used to connect your NEMA23 stepper motor to your lead screw. The flexibility will help with any misalignment while the jaw allows for higher torque than our Flexible Couplings.
- Material: Aluminum
- Sleeve Material: Polyurethane
- Shaft: 6.35mm x 8mm
- Length: 25mm
- OD: Outer Diameter: 20mm
- Supplied with all components necessary for operation
- Integrated modular control electronics for an easy connection to the computer via USB interface resp. via optional parallel or optional Ethernet RJ45 interface
- MDF machine table with aluminum T-slots resp. optional aluminum T-slot table
- Two different machine table heights
- Bosch Rexroth ball bearing guide
- Semi Closed Loop System™
- HIWIN® ball screws
- Flexi Guides™ to securely guide cables and tubes
- Powerful motors Nema 23 (Z-axis: 3A; X- and Y-axis: 4A)
- In-house development of STEPCRAFT aluminum profiles with innovative high rigidity X-profile (registered utility model)
- Standard Ø 43 mm tool holder enables the use of third-party devices (if necessary with adapter)
- Safety brush
- Completely removable machine table
- Freestyle Milling™
- Made in Germany
- 3 years manufacturer's warranty
- Overall Size (X,Y,Z): 1213 x 1624x 646 mm
- Working Space (X,Y,Z): 979 x 1444 x 194 mm
- Clamping Surface (X,Y): 1143 x 1550 mm
- Backlash: < 0.03 mm
- Weight: 137 kg (302.03 lbs)
