The STEPCRAFT V-Pad 55 SP Set contains all the materials you need to get started with professional vacuum clamping technology, including a vacuum-box and four V-Pad 55 SP vacuum-pads.
The vacuum-box generates the necessary overpressure for the lifting piston (sliding pin) of the V-Pad 55 SP via the connected compressor compressed air, or, by simply switching manually, the vacuum for fixing the workpiece. The vacuum is generated by an integrated vacuum ejector.
The pads have a high holding force and an integrated lifting piston (sliding pin) for easy positioning of the workpiece.
The pads are coolant-compatible and additional pads can be connected if required.

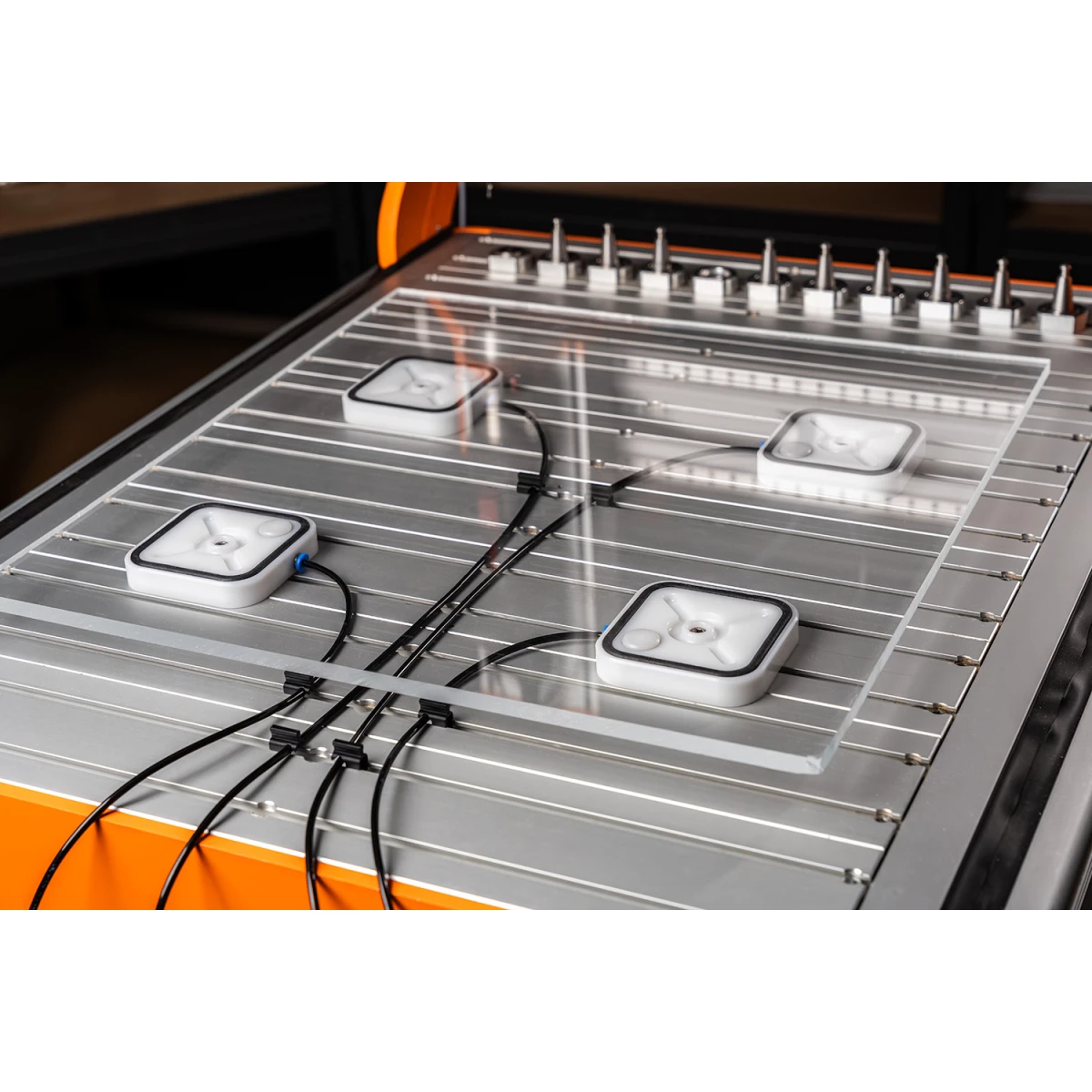

Fastening of one pad is simply be done with one single screw in the groove of the machine table.
After suction, the workpieces are clamped at a height of exactly 16 mm above the machine table.

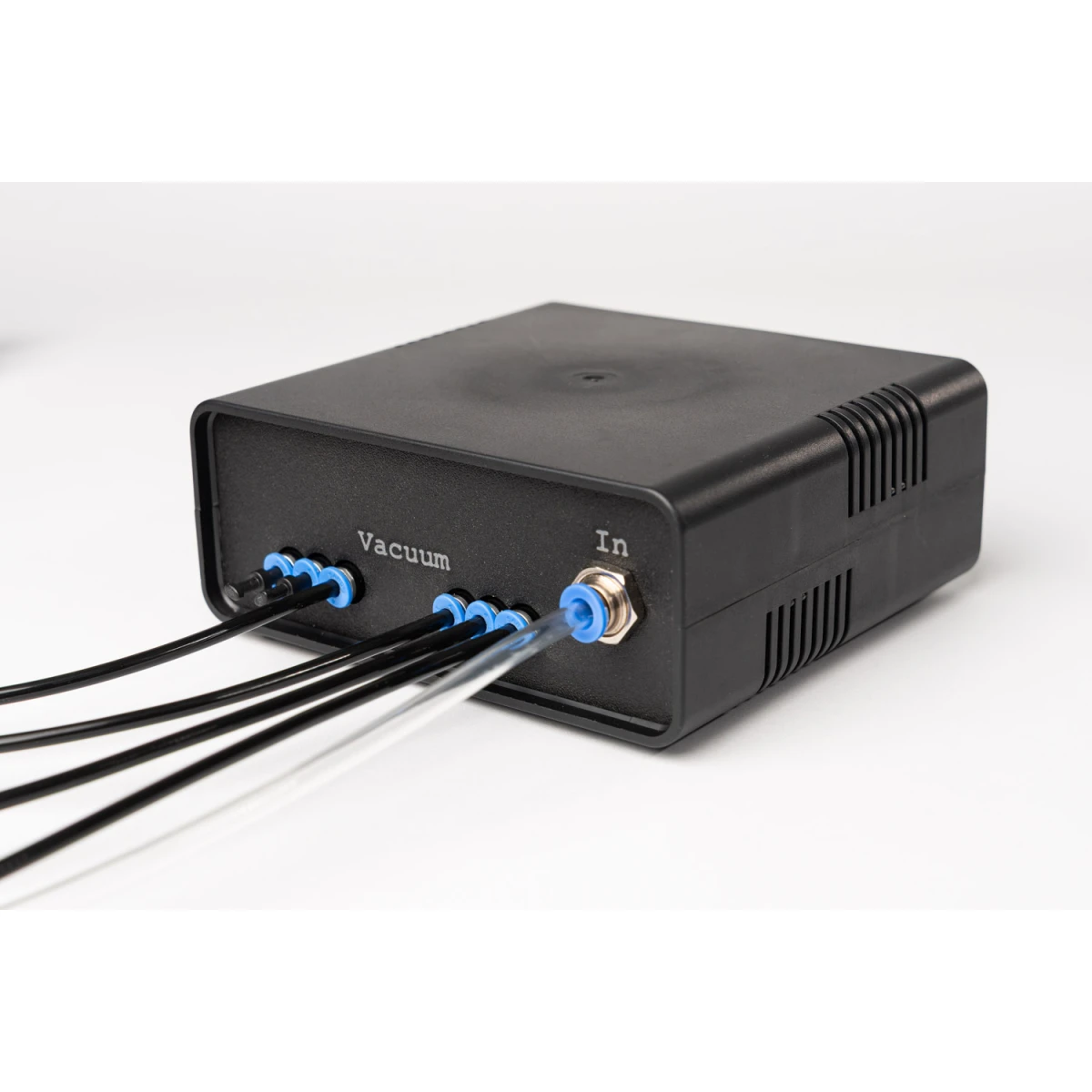

Technical data vacuum box:

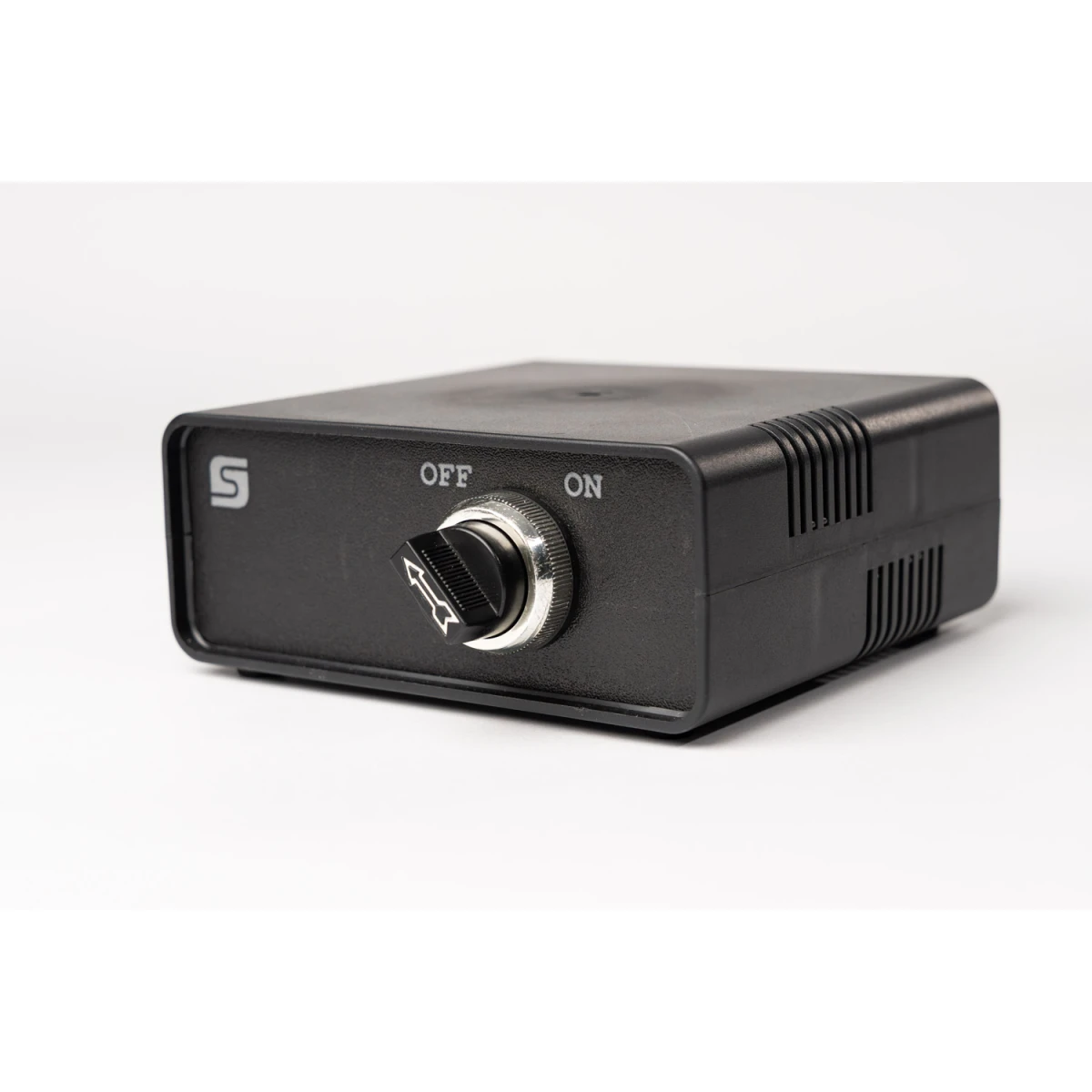

- Control of positive/negative pressure: manual switch
- Air consumption: max. 7 liters/min.
- Negative pressure: max. – 0.85 bar
- Input connection: Push-fit 6 mm
- Output connection: Push-fit 4 mm

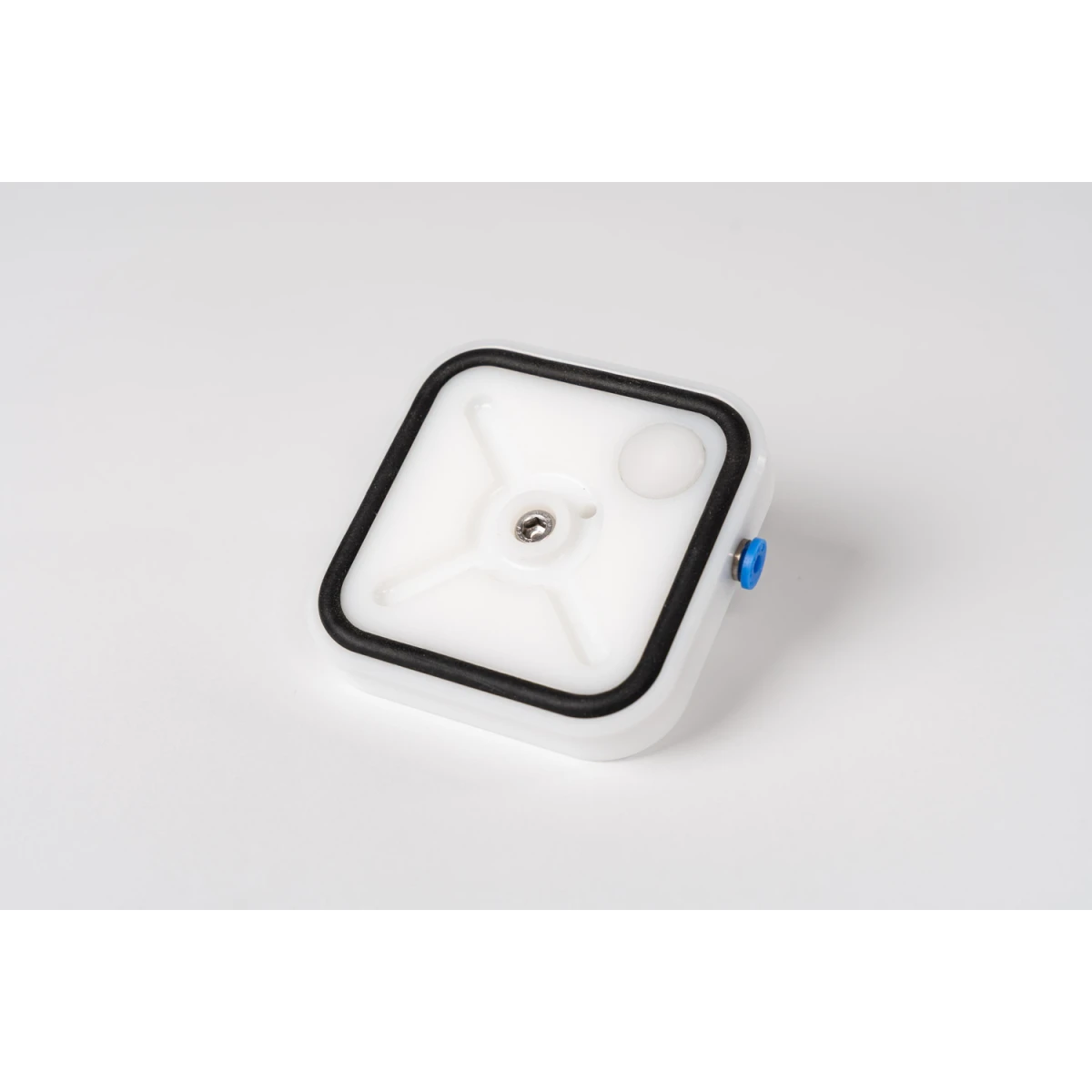

Technical data vacuum pad:
- Manufacturing material: Industrial plastic PE 500 (high molecular weight polyethylene, PE-HMW), which is characterized by high impact strength and abrasion resistance as well as good sliding properties.
- External dimensions: 92 x 92 x 16 mm
- Effective vacuum area: 55 cm2, at a negative pressure of 0.7 bar, this results in a holding force of approx. 39 kg
- Hose connection: 4 mm
- Sealing cord: Synthetic rubber EPDM, d = 6 mm

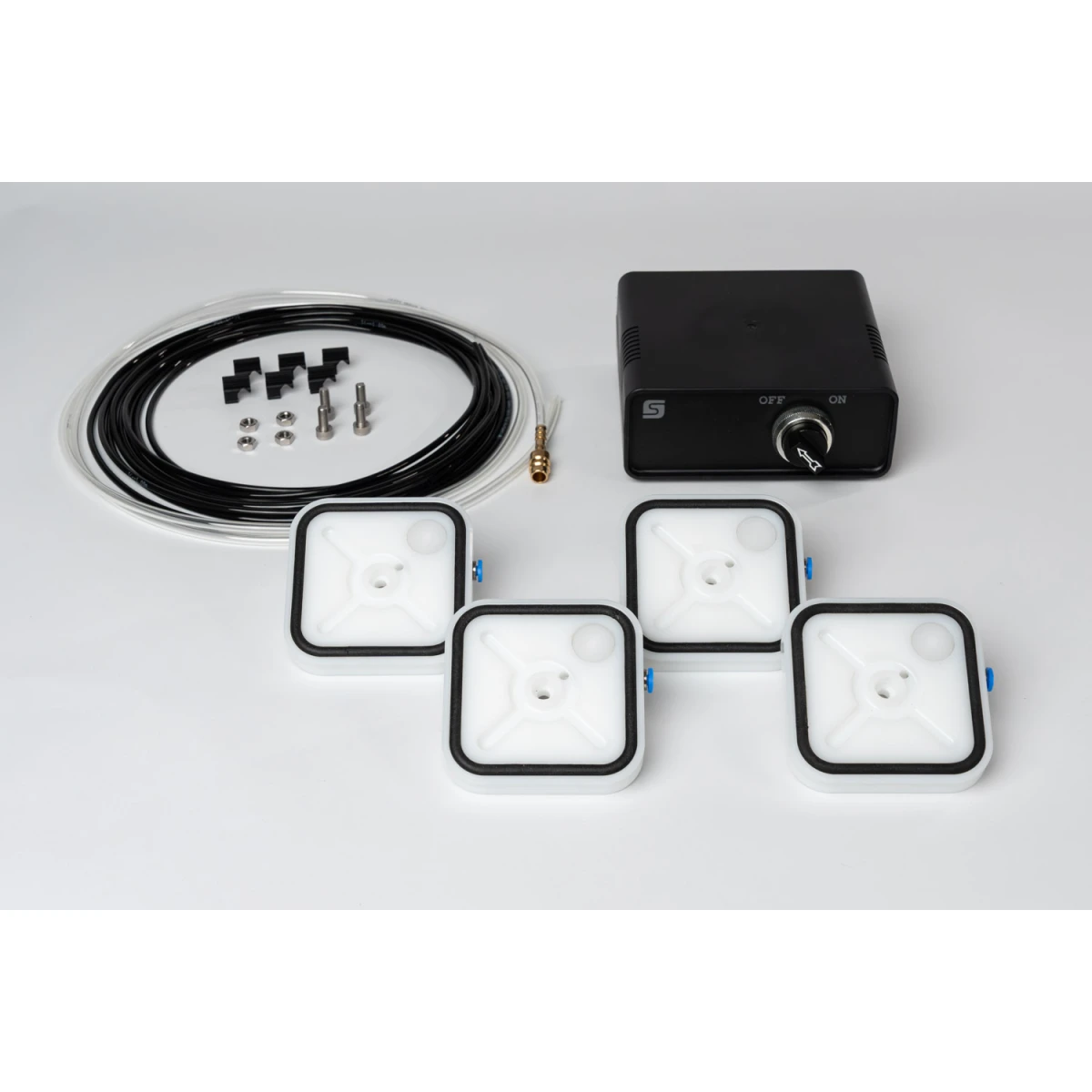

Scope of delivery:
- 1x vacuum-box
- 4 x V-Pad 55 SP vacuum-pads with sealing cord and 4 mm push-fit connector
- 4x sealing cord
- 4x fastening materials (M6 screw and nut)
- 4x 2 m air hose, d = 4 mm
- 1x 3 m air hose, d = 6 mm, incl. 1/2 inch compressed air coupling
- 8x air hose fixing clamps
- Supplied with all components necessary for operation
- Integrated modular control electronics for an easy connection to the computer via USB interface resp. via optional parallel or optional Ethernet RJ45 interface
- MDF machine table with aluminum T-slots resp. optional aluminum T-slot table
- Two different machine table heights
- Bosch Rexroth ball bearing guide
- Semi Closed Loop System™
- HIWIN® ball screws
- Flexi Guides™ to securely guide cables and tubes
- Powerful motors Nema 23 (Z-axis: 3A; X- and Y-axis: 4A)
- In-house development of STEPCRAFT aluminum profiles with innovative high rigidity X-profile (registered utility model)
- Standard Ø 43 mm tool holder enables the use of third-party devices (if necessary with adapter)
- Safety brush
- Completely removable machine table
- Freestyle Milling™
- Made in Germany
- 3 years manufacturer's warranty
- Overall Size (X,Y,Z): 1213 x 1624x 646 mm
- Working Space (X,Y,Z): 979 x 1444 x 194 mm
- Clamping Surface (X,Y): 1143 x 1550 mm
- Backlash: < 0.03 mm
- Weight: 137 kg (302.03 lbs)
