More cleanliness for your tool changer magazine
ATC TOOL COVER FOR STEPCRAFT M SERIES

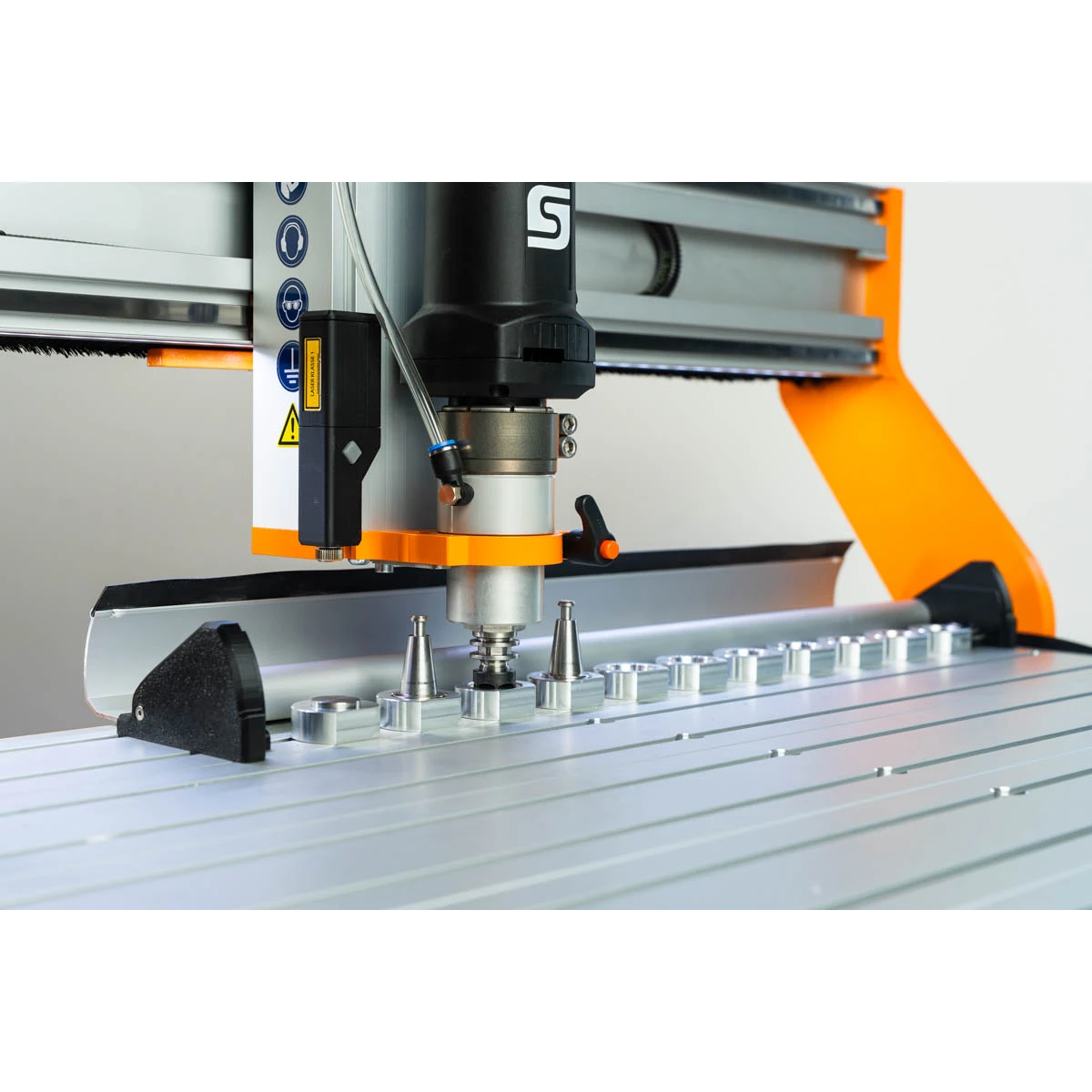

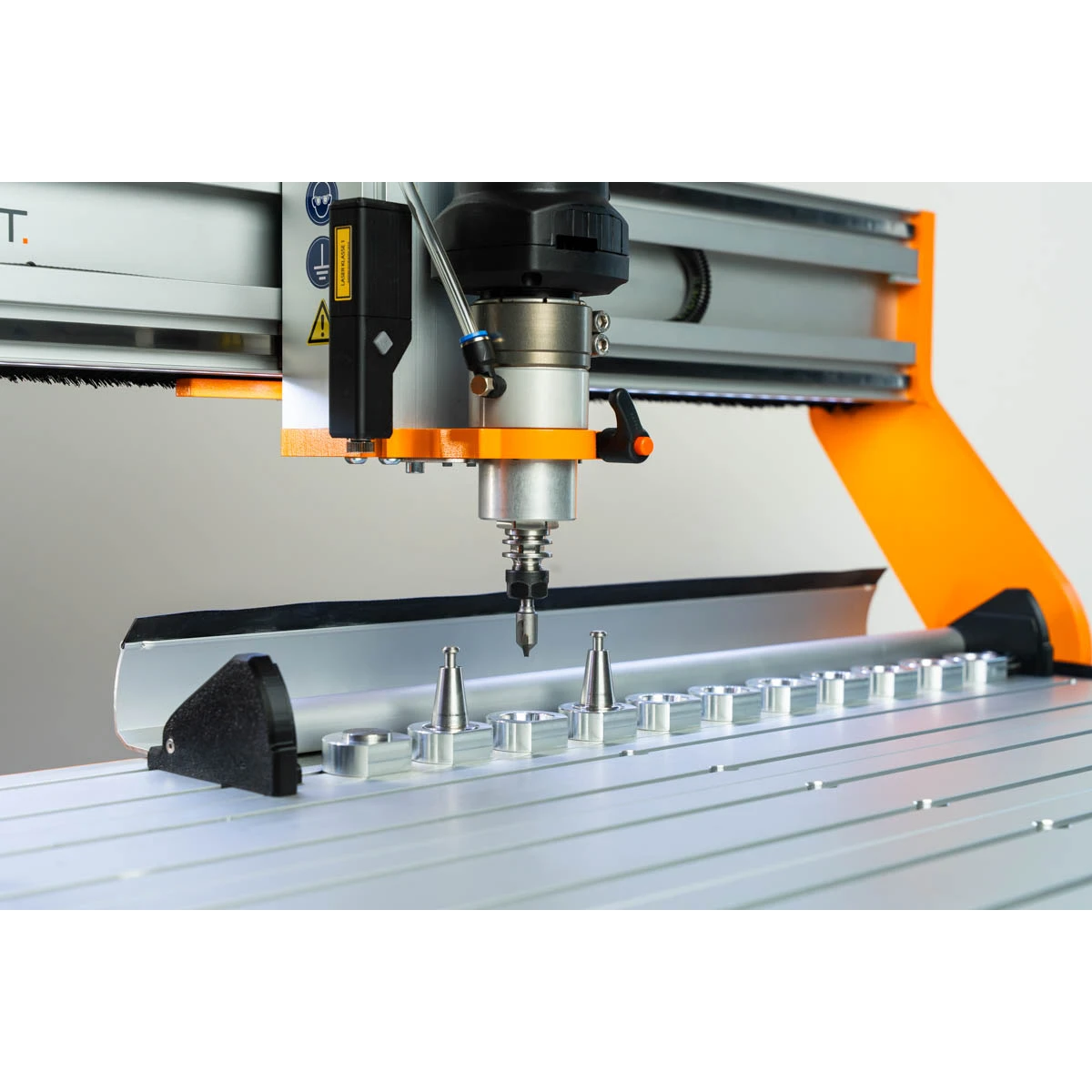

Reliably protects the tool changer magazine from chips, dust, and contamination. The ATC Tool Cover was specially developed for STEPCRAFT CNC machines of the M series. It covers the tool changer magazine during milling operations, opens automatically during tool changes, and then closes again independently. This keeps the magazine area cleaner and better protects sensitive components from contamination.
Product Description
In daily use, chips, dust, and debris can accumulate in the area of the tool changer magazine. This is exactly where the ATC Tool Cover comes into play: it protects the magazine during operation without interfering with the automatic tool change.

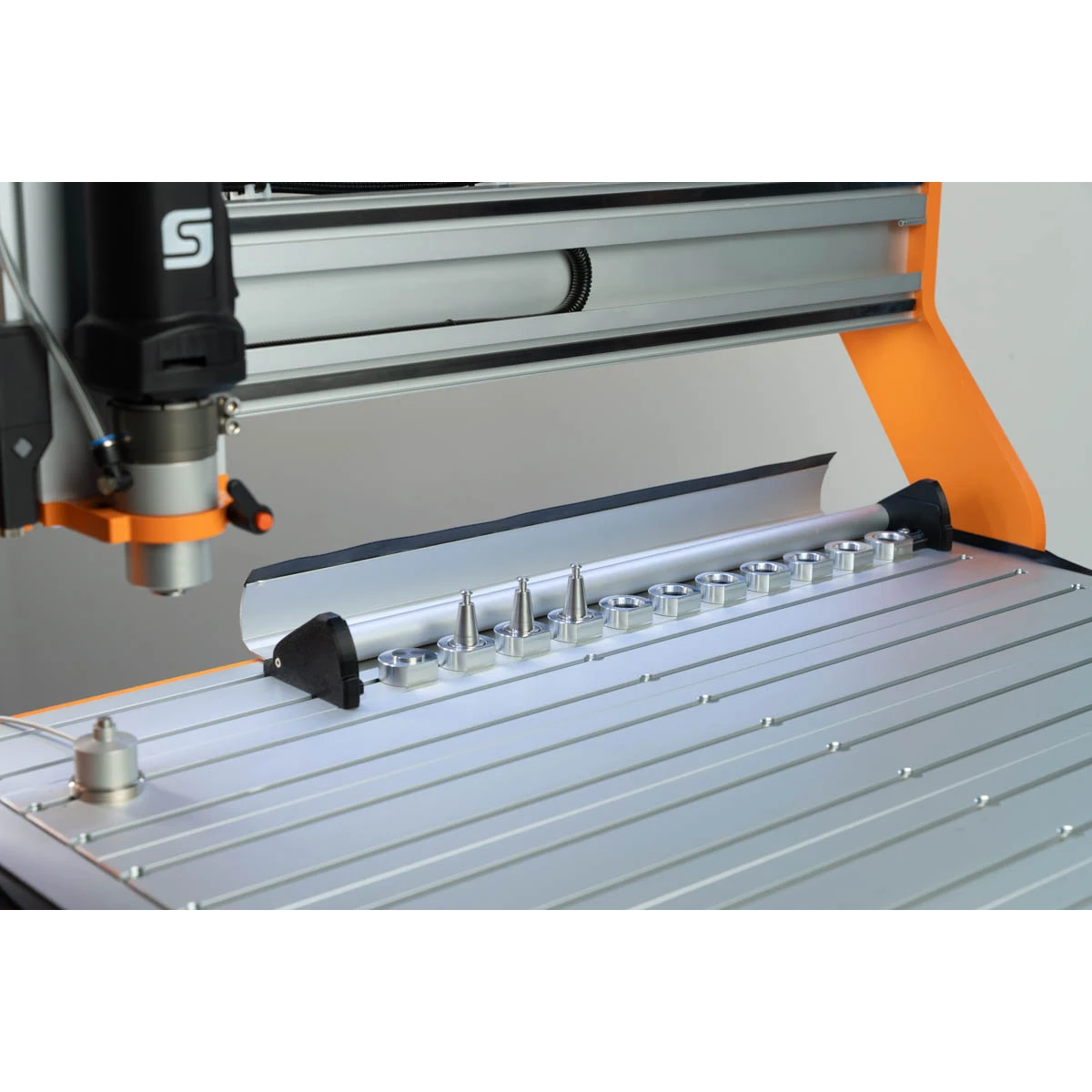

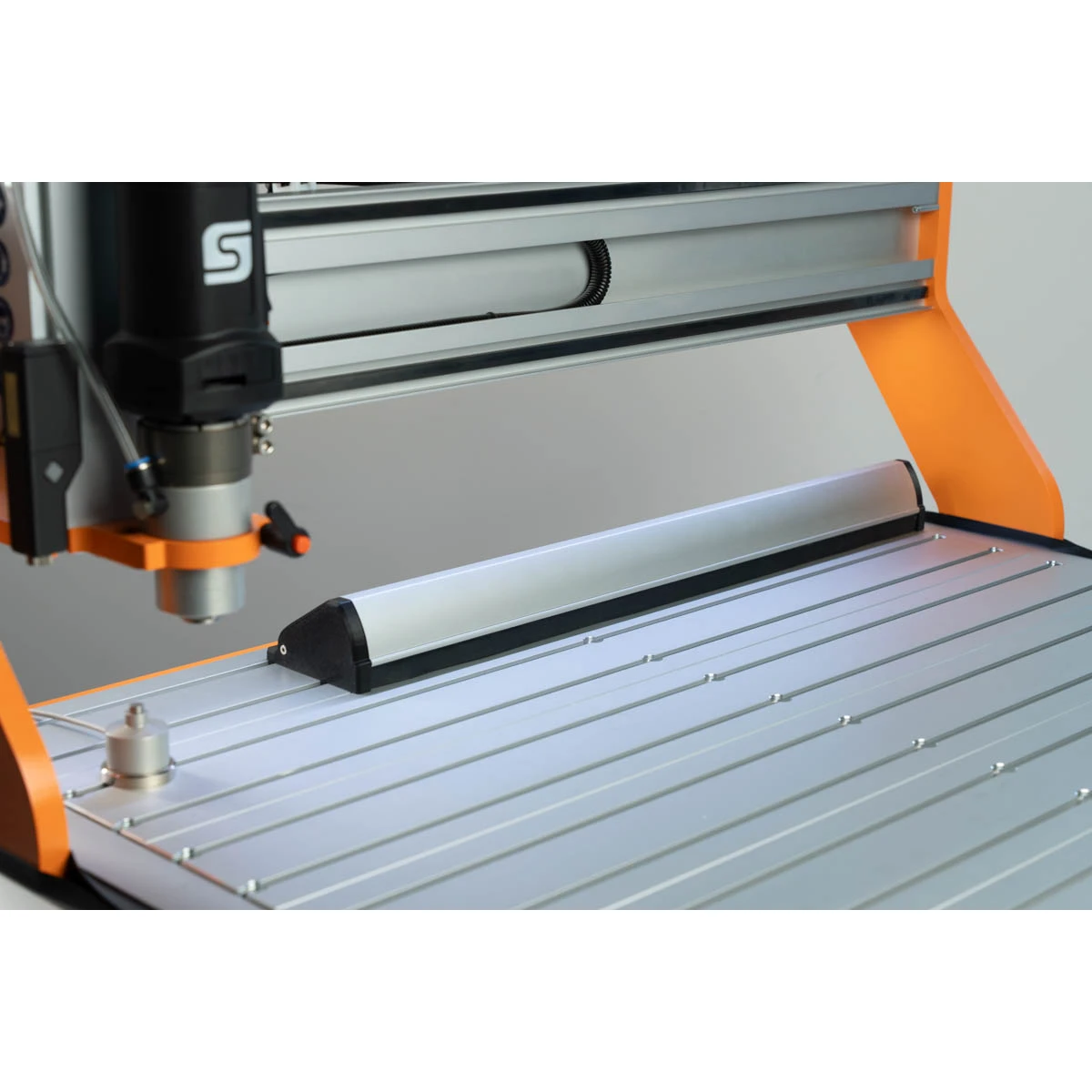

Thanks to the integrated flap mechanism, the cover only opens when needed – namely during tool changes. It then closes again automatically. This ensures greater cleanliness in the magazine area and is a practical upgrade for anyone looking to enhance their STEPCRAFT CNC machine.
Your Benefits
- Protects the tool changer magazine from chips, dust, and debris
- Opens automatically during tool changes
- Closes automatically after the change
- Reduces contamination in the magazine area
- Practical addition for everyday CNC use
- Precision-fit for STEPCRAFT M series machines
- Compatibility
- Supplied with all components necessary for operation
- Integrated modular control electronics for an easy connection to the computer via USB interface resp. via optional parallel or optional Ethernet RJ45 interface
- MDF machine table with aluminum T-slots resp. optional aluminum T-slot table
- Two different machine table heights
- Bosch Rexroth ball bearing guide
- Semi Closed Loop System™
- HIWIN® ball screws
- Flexi Guides™ to securely guide cables and tubes
- Powerful motors Nema 23 (Z-axis: 3A; X- and Y-axis: 4A)
- In-house development of STEPCRAFT aluminum profiles with innovative high rigidity X-profile (registered utility model)
- Standard Ø 43 mm tool holder enables the use of third-party devices (if necessary with adapter)
- Safety brush
- Completely removable machine table
- Freestyle Milling™
- Made in Germany
- 3 years manufacturer's warranty
- Overall Size (X,Y,Z): 1213 x 1624x 646 mm
- Working Space (X,Y,Z): 979 x 1444 x 194 mm
- Clamping Surface (X,Y): 1143 x 1550 mm
- Backlash: < 0.03 mm
- Weight: 137 kg (302.03 lbs)
