Diameter | Cutting Height | Shank | Overall Length | Radius | Flute | Ball Bearing |
---|---|---|---|---|---|---|
1/2 | 1/2 | 1/4 | 2-1/8 | 1/8 | 2 | No |

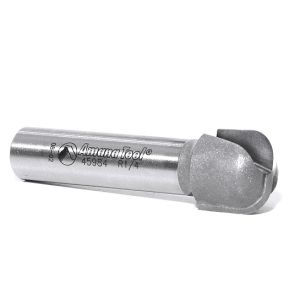

For routing solid wood serving trays, flat dishes, shallow bowls and similar objects. These router bits cuts flat, smooth bottom surfaces, vertical walls, and a transition radius between them, all in one pass.
- 3 in 1 specialty plunging bit
- Carbide tipped
- Industrial quality
Can be used in handheld,table-mounted, and CNC routers.
Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish” resulting in clean cuts, less chance for chip re-welding, a superior surface finish and a longer tool life. Right hand helix right hand cut.
Direction | Up-Cut |
---|---|
(D) Diameter | 1/8 |
(B) Cutting Height | 1/2 |
(d) Shank | 1/4 |
Overall Length (L) | 2 |
Flutes | 1 |
Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish” resulting in clean cuts, less chance for chip re-welding, a superior surface finish and a longer tool life. Right hand helix right hand cut.
Direction | Up-Cut |
---|---|
(D) Diameter | 1/8 |
(B) Cutting Height | 1/2 |
(d) Shank | 1/4 |
Overall Length (L) | 2 |
Flutes | 1 |
